System Overview

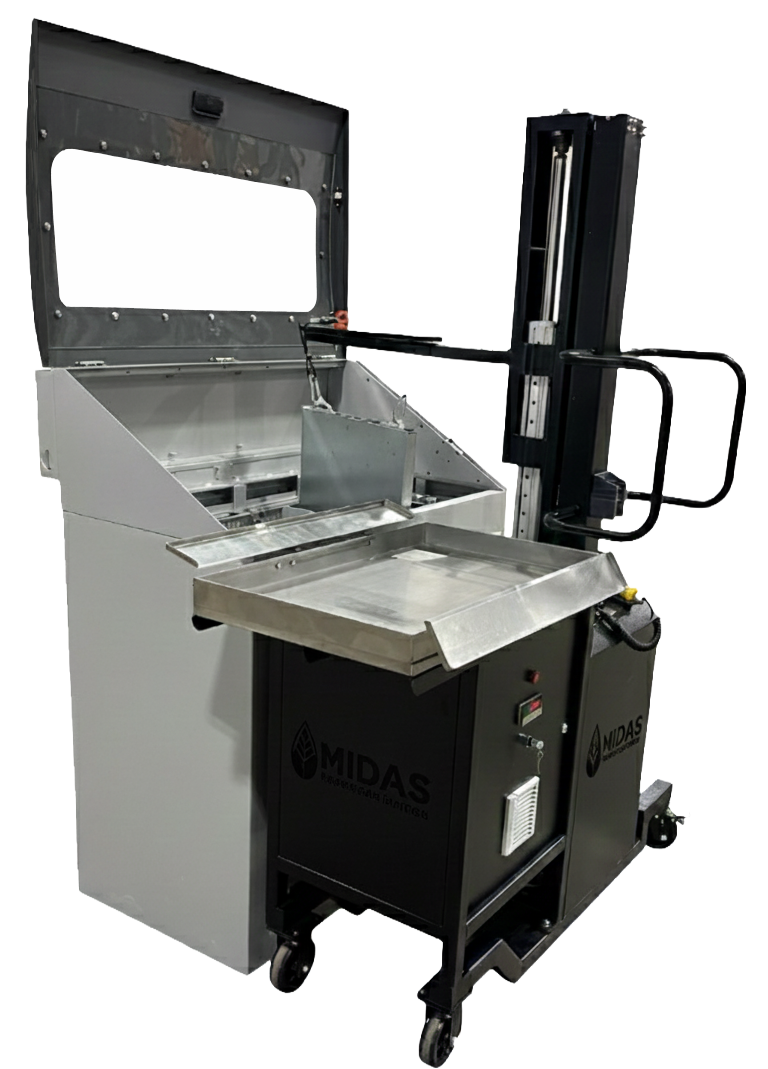

Electric lift truck designed to safely raise, rotate and transfer immersion-cooled servers from immersion tanks to work surfaces, while managing dielectric fluid and protecting operators and equipment.
Reduces strain and risk vs. manual or improvised handling by giving technicians a stable, controlled way to move immersed servers.
Works directly between immersion tanks, sinks and benches to simplify server removal, service and reinstallation without disruptions.
Integrated tray and drain path capture and return dielectric fluid to keep the work area cleaner and reduce fluid loss.
Compact footprint with swivel and directional casters moves easily through aisles so servers can be positioned exactly where needed.
On-board lithium battery and built-in charger enable cord-free operation throughout the facility.
Simple lift and rotation controls plus a clear status display provide predictable movements for more consistent maintenance and less downtime.
| Maximum Load Capacity | 250 lb / 113 kg |
| Lift Height Range | 47.2–94.5 in / 1200–2400 mm |
| Lifting Speed | 2.0 in/s / 50 mm/s |
| Rotation Angle | 90° to each side |
| Platform Size (L × W × H) | 35.7 × 21.8 × 2.4 in (906 × 553 × 60 mm) |
| Overall Dimensions (L × W × H) | 65.2 × 22.4 × 84.7 in (1657 × 570 × 2152 mm) |
| Battery Type | 48 V / 25 Ah lithium battery |
| Charger | 48 V / 5 A, input 100–240 V AC |
| Charging Time | approx. 4 h (0–100%) |
| Typical Battery Life | ~2 h of continuous use |
| Recommended Operating Temperature | –10 °C to 40 °C |
